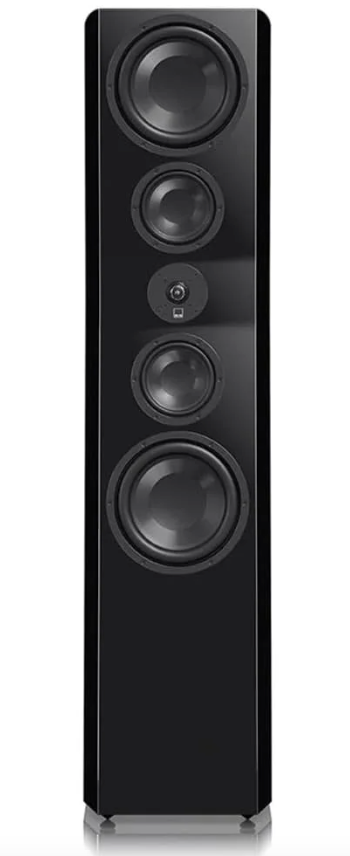

SVS ULTRA EVOLUTION PINNACLE TOWER LOUDSPEAKERS

Price

£5,995.00

The SVS ULTRA EVOLUTION PINNACLE speakers are a three-way, seven driver, rear ported floorstanding loudspeaker comprising four 8" composite glass fibre bass drivers in a force-cancelling array, dual 5.25" midrange drivers, and a diamond coated aluminium tweeter produce an accurate tonal balance with dynamics and control. Finished in gloss black or gloss white, or real wood veneer.

COLOUR

Quantity

PRODUCT INFORMATION

Curved front baffle aligns all drivers on a vertical plane ensuring sound from each driver reaches your ears at the exact same instant.

Maximizes phase coherence for more convincing and immersive soundstage with pinpoint accuracy and imaging.

Midrange drivers and woofers positioned above and below the tweeter allow for seamless crossover blending to create an idealized “point-source” where sound emanates from single point in front of the speaker to optimize dispersion characteristics.



Diamond Coated Aluminum Dome Tweeter



Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.

This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.

The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.

Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize listening sweet spot.



Quad 8” Glass Fiber Woofers in Force-Balanced Array



Dual opposing active woofers on the top and bottom of the cabinet render effortless low frequency response while addressing room modes with deep, authoritative bass is evenly spread throughout the listening area.

Mechanical energy from each front-firing woofer is equaled inside the cabinet by the rear-firing woofer eliminating mechanical coloration for pure, accurate low frequencies at any playback level.

SPECIFICATIONS

  • Frequency Response: 24Hz to 40kHz (+/-3 dB)
  • Nominal Impedance: 6 ohms
  • Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
  • Recommended amplifier power: 20 – 300 watts

Speaker Specs:

  • Floor-standing Tower Loudspeaker
  • Piano gloss black, piano gloss white, real black oak veneer finish options
  • Dual gold-plated 5-way binding posts
  • Dual 3” wide-flared rear-firing ports 
  • Cloth grille with magnetic retention system
  • Elastomer screw-in feet – adjustable for level
  • Spiked metal screw-in feet included – adjustable for level
  • Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)
  • Overall Dimensions: 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D) (includes grille, feet, and binding posts)
  • Shipped Dimensions: 54.6” (H) x 16.3” (W) x 22.6” (D) / 1387mm (H) x 415mm (W) x 575mm (D)
  • Weight Packaged: 110.8 pounds / 50.3 kgs
  • Weight Unboxed: 96.7 pounds / 43.9 kgs
